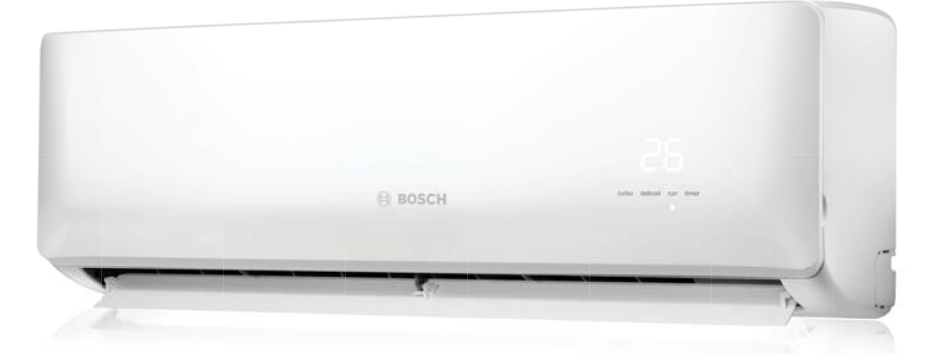

Bosch BMS500-AAU018-1AHWXB Climate 5000 1-1/2 Ton 21 Seer Mini Split Heat Pump Wall Mount Indoor Unit

Item SKU - 8-733-953-096 by Bosch
EDP - 1239257


Please Login for Pricing

Product Description

Overview

The ductless system utilizes electricity to pump refrigerant and transfer heat from one space to another. In cooling mode during warm weather or summer months, the system efficiently moves heat from the inside space to the outdoors. Conversely, in heating mode during cold or winter months, the units utilize refrigerant, which is naturally colder that outdoor temperatures, to absorb heat from outside and transfer it to the inside space. The ductless systems electrical, refrigerant and condensate lines use a 3 inch diameter hole in an exterior wall to connect the outdoor condenser and the indoor units. The ductless system provides high efficiency comfort and can help lower energy costs, all with sound levels as low as 26.5 dB.

Features

  • Includes a remote control
  • 1-1/2 ton cooling capacity - 18,000 BTU's heating capacity
  • Three speed fan: 1100 RPM, 900 RPM and 700 RPM
  • Operating range for heating: 32 degrees to 86 degrees
  • Operating range for cooling: 62 degrees to 90 degrees
  • Whisper quiet operation: as low as 26.5 dB
  • Compatible with the Bosch Connected Control Wi-Fi thermostat family (Wi-Fi thermostat not included)

Specifications

These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).

Nominal cooling
18000
Nominal Heating
18000
Electrical Designation
1-60-208/230
Refrigerant
R410A
HSPF
10.4
Suction Line Size
1/2
Liquid Line Size
1/4
Length (inches)
8.60
Height (inches)
12.40
Width (inches)
39.0
Weight (pounds)
34.80
Thermostat
Remote
Configuration
Wall Mounted
