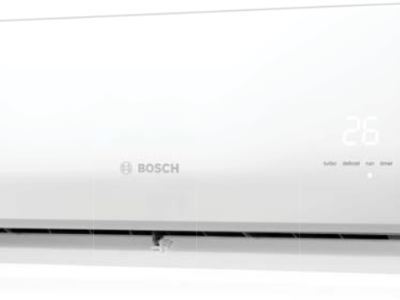

Bosch BMS500-AAU012-1AHWXB Climate 5000 1 Ton 22.7 Seer Mini Split Heat Pump Wall Mount Indoor Unit

Item SKU - 8-733-953-095 by Bosch
EDP - 1239254


Please Login for Pricing

Product Description

Overview

The ductless system utilizes electricity to pump refrigerant and transfer heat from one space to another. In cooling mode during warm weather or summer months, the system efficiently moves heat from the inside space to the outdoors. Conversely, in heating mode during cold or winter months, the units utilize refrigerant, which is naturally colder that outdoor temperatures, to absorb heat from outside and transfer it to the inside space. The ductless systems electrical, refrigerant and condensate lines use a 3 inch diameter hole in an exterior wall to connect the outdoor condenser and the indoor units. The ductless system provides high efficiency comfort and can help lower energy costs, all with sound levels as low as 24 dB.

Features

  • Includes a remote control
  • 1 ton cooling capacity - 12,000 BTU's heating capacity
  • Three speed fan: 1170 RPM, 900 RPM and 700 RPM
  • Operating range for heating: 32 degrees to 86 degrees
  • Operating range for cooling: 62 degrees to 90 degrees
  • Whisper quiet operation: as low as 24 dB
  • Compatible with the Bosch Connected Control Wi-Fi thermostat family (Wi-Fi thermostat not included)

Specifications

These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).

Nominal cooling
12000
Nominal Heating
12000
Electrical Designation
1-60-208/230
Refrigerant
R410A
HSPF
11.0
Suction Line Size
1/2
Liquid Line Size
1/4
Length (inches)
7.80
Height (inches)
11.0
Width (inches)
32.90
Weight (pounds)
25.40
Thermostat
Remote
Configuration
Wall Mounted
