Overview

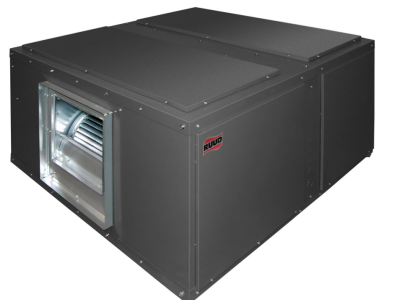

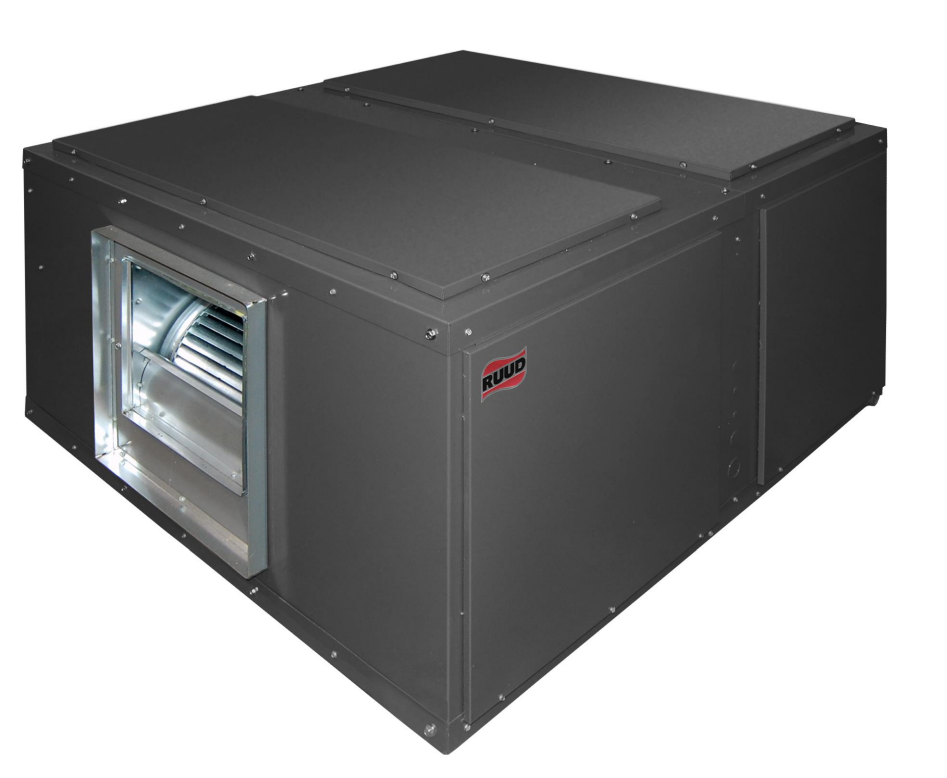

The Ruud RHCLP Commercial heat pump air handler includes an inherently protected motor mounted inside the insulated cabinet, field piping connections made through a fixed post between two side access panels, and may be installed in horizontal or vertical applications.

Features

• This is a multiposition air handler: Vertical or horizontal
• Inherently protected motor is mounted inside the insulated cabinet to reduce motor noise
• Variable frequency drive (VFD) provides two stage air flow
• Low profile allows for horizontal installation and allows the unit to be moved through most standard doorways
• Two standard TXV thermal expansion valves with internal check valves
• One inch throwaway filters are standard, but the filter racks are designed to accept either one inch or two inch filters
• Two circuit, interlaced row split coils are constructed with copper tubing and aluminum fins mechanically bonded to the tubing
• Refrigerant connections are made through a fixed post located between two side access panels on either side of the unit.
• The galvanized steel drain pan is designed to trap condensate in either vertical or horizontal installations
• Two removable panels on top and each side of the unit are easily removed for access to motors, blowers, sheaves and filters
