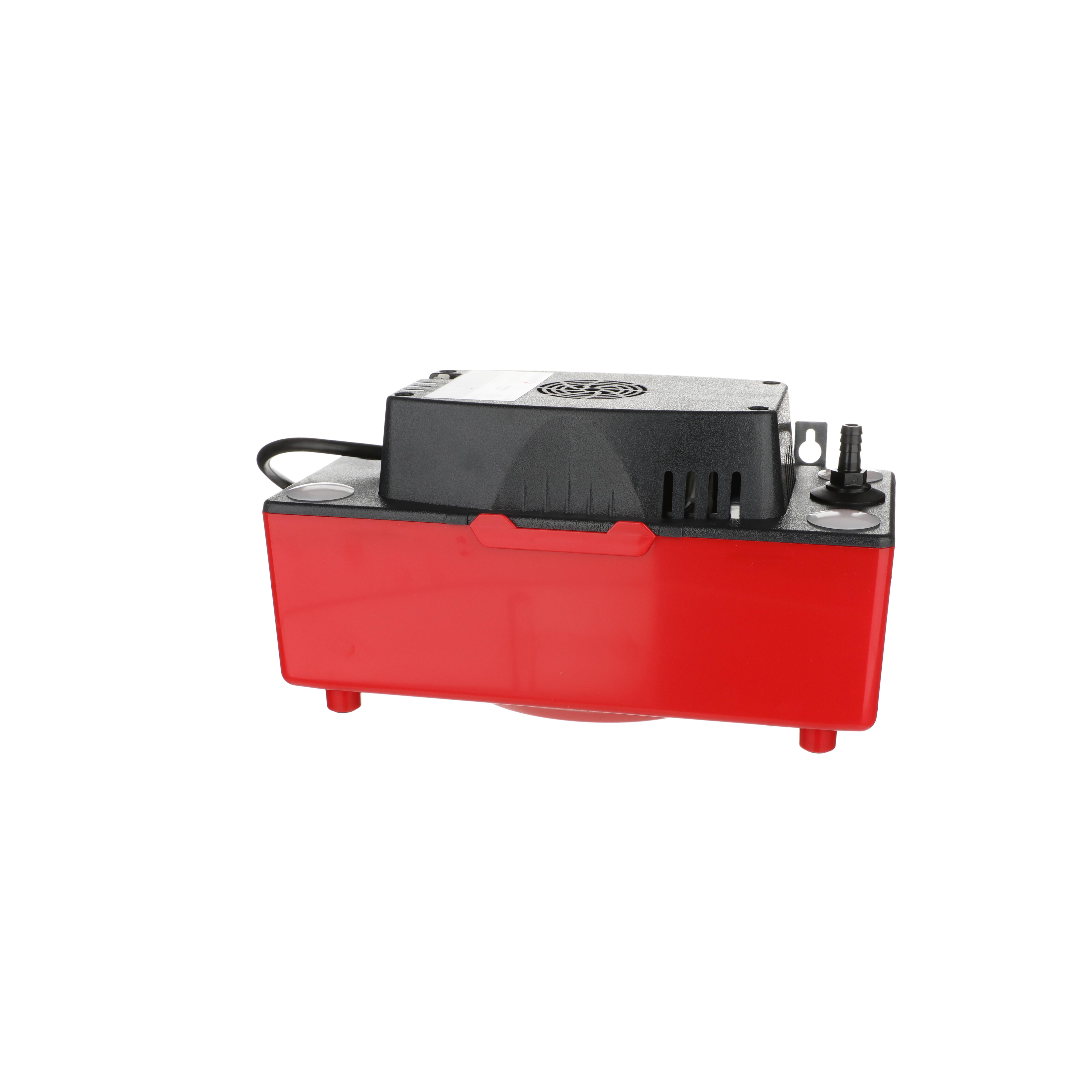

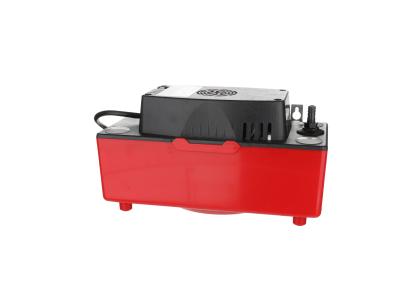

Diversitech CP-22T Condensate Pump, 1.6 gpm Flow Rate
Item SKU - CP-22T by Diversitech
EDP - 1234398
Product Description
Suitable for use with condensate from air conditioning applications. 22 ft of lift compared to the typical 20 ft. Features include vibration dampening feet and motor mounts, metal hang tabs, four inlet holes, a clear indicator display, a float switch and check valve and pan pill dispenser. Integrating the CP-22 into your system is easy. 1/4 in quick connect terminals provide easy connection to the built in overflow switch. 3 terminals are provided allowing flexibility to connect air-handler shut-down and optional alarm as needed. The new CP-22LP comes packed with all the same great features found in the CP-22, but now in a low profile package. This pump is only 4-3/8 in. tall so it's a good fit for those instances where space is at a premium. The shorter reservoir holds 1/3 gal. Suitable for use with condensate up to 160 deg F.
Diversitech Condensate Pump, Series: CP Series, 1.6 gpm Flow Rate, 1.9 A 120 VAC 60 Hz Electrical Rating, 1/2 gal Reservoir, 140 deg F, 11.8 in L x 5.9 in W x 6.7 in H
Documentation
Diversitech CP-22T Condensate Pump, 1.6 gpm Flow Rate
Item SKU - CP-22T by Diversitech (EDP 1234398)
Product Description
Suitable for use with condensate from air conditioning applications. 22 ft of lift compared to the typical 20 ft. Features include vibration dampening feet and motor mounts, metal hang tabs, four inlet holes, a clear indicator display, a float switch and check valve and pan pill dispenser. Integrating the CP-22 into your system is easy. 1/4 in quick connect terminals provide easy connection to the built in overflow switch. 3 terminals are provided allowing flexibility to connect air-handler shut-down and optional alarm as needed. The new CP-22LP comes packed with all the same great features found in the CP-22, but now in a low profile package. This pump is only 4-3/8 in. tall so it's a good fit for those instances where space is at a premium. The shorter reservoir holds 1/3 gal. Suitable for use with condensate up to 160 deg F.
Diversitech Condensate Pump, Series: CP Series, 1.6 gpm Flow Rate, 1.9 A 120 VAC 60 Hz Electrical Rating, 1/2 gal Reservoir, 140 deg F, 11.8 in L x 5.9 in W x 6.7 in H
