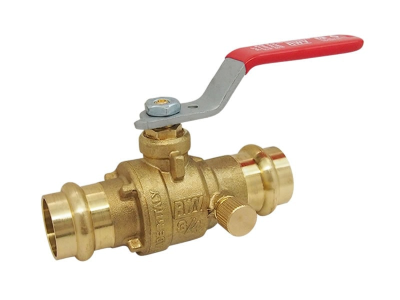

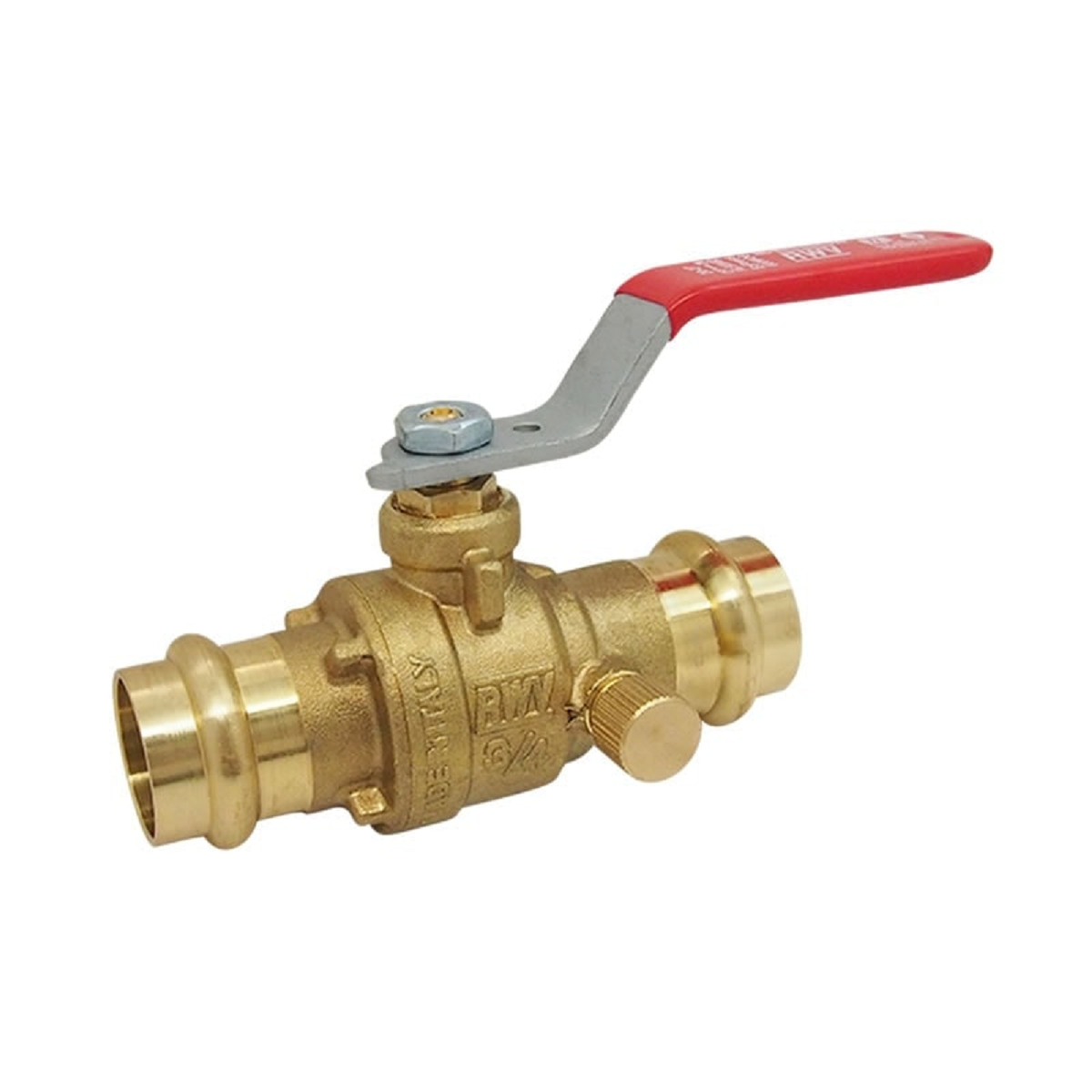

Red and White 5020ABD-1/2 EzPress Lead Free Brass 1/2 inch Press x 1/2 inch Press Full Port Ball Valve with Drain
Item SKU - 5020ABD 1/2 by Red and White
EDP - 1166918
Please Login for Pricing
Product Description
Old number 150233G
Red handle - Not for use with steam - Two piece body - Blow out proof stem - Adjustable packing - Virgin PTFE seats - Chrome plated ball
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Material
Lead Free Brass
Lead Free
Yes
P1 Size
1/2
P1 Connection
Press
P2 Size
1/2
P2 Connection
Press
WOG Pressure rating
600 PSIG
Body Style
2 piece
Bore
Full Port
Approval
NSF
ANSI
Purge
Yes
Approximate Height (inches)
2.38
Approximate Length (inches)
.75
Approximate Weight (pounds)
.48
Approximate Width (inches)
3.32
