Overview

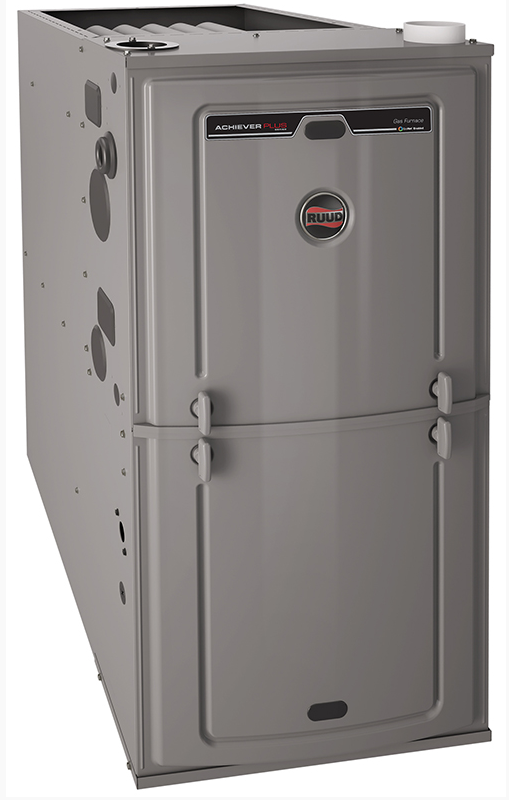

The Ultra Series U97V is part of a new line of Ruud smart heating and cooling products. Using the latest in sensor technology and a powerful EcoNet monitoring system, Ruud provides homeowners with a new level of protection, control and energy savings. Ruud smart heating and cooling products will alert the homeowner if there is ever an issue via the EcoNet Smart Thermostat 1 and the EcoNet Mobile app. The EcoNet Mobile App makes it easy for homeowners to manage their home comfort environment at home or on the go, while enjoying the convenience and savings benefits of a highly efficient system.

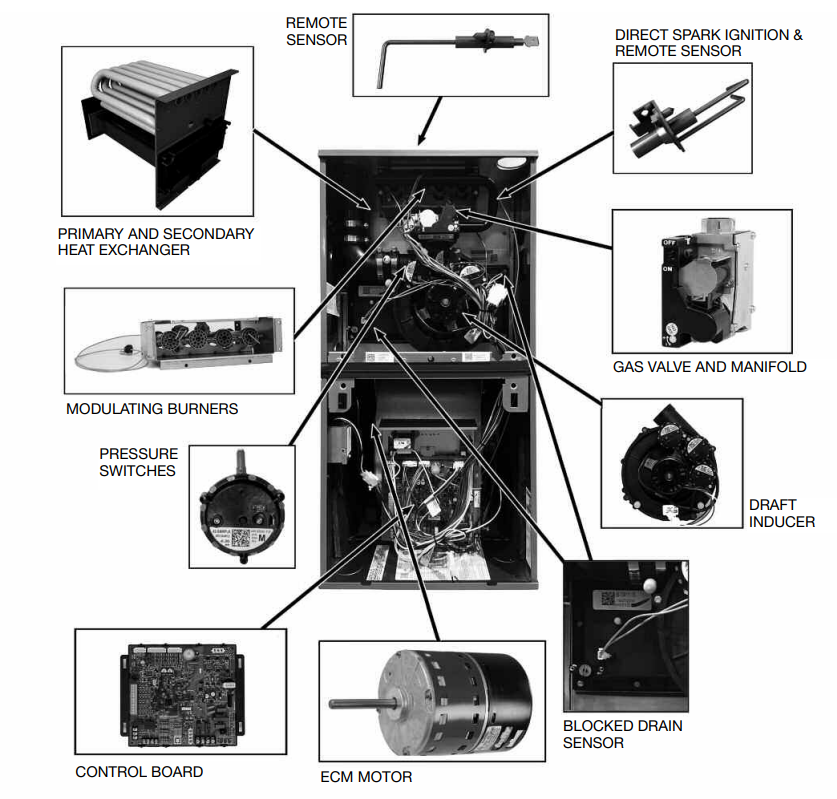

Features

• This is an upflow only furnace
• Pre-painted galvanized steel cabinet
• Can be converted to LP with an LP conversion kit (not included)
• Up to 3 tons of air conditioning can be added to this furnace
• Removable heat exchanger is constructed of aluminized steel primary, and stainless steel secondary for maximum corrosion resistance
• Plus One diagnostics include a 7 segment LED
• Plus One ignition system is DSI for reliability and longevity
• Plus One water management system with blocked drain sensor
• This furnace is EcoNet enabled
• When used with an EcoNet control center modulating thermostat, modulation rate is between 40% and 100% of total capacity
• When used with a two stage thermostat, the furnace operates between 40% and 65% on the first stage, then 100% on the second stage
• When used with a single stage thermostat, the furnace functions as a three stage furnace, operating at 40%, 65% and 100% of total capacity
• Pre-marked hoses insure proper system drainage
• Vent with 2 inch or 3 inch PVC
• Replaceable collector box
• Variable speed ECM motor
• Integrated control boards feature dip switches for easy system set up
• Self priming condensate trap
• Includes solid bottom
