Overview

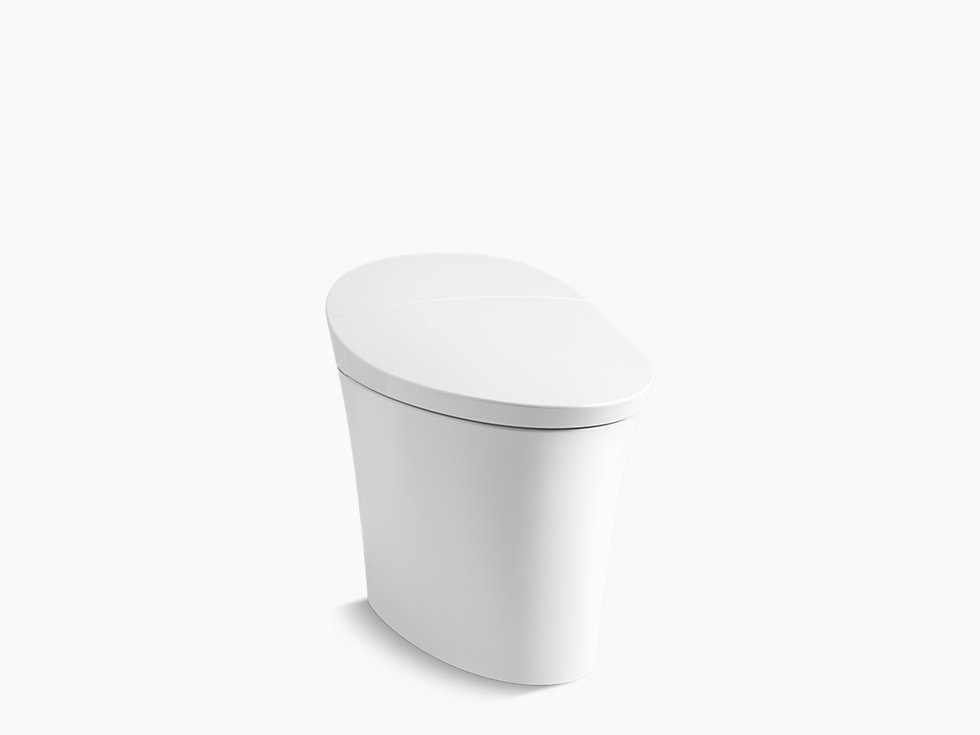

With its flowing and immaculately balanced curves, the Veil one-piece toilet with integrated cleansing functionality epitomizes minimalist and ergonomic design. Its sculpted core provides a suite of precision features finely tuned to offer optimum hygiene and ultimate individual comfort, from personal cleansing to an LED nightlight to hands-free opening and closing. All of the features are easy to control on a touchscreen LCD remote control.

Features

• Compact, streamlined one-piece toilet with integrated cleansing.
• Elongated bowl offers added room and comfort.
• Tankless design with direct water supply.
• Dual flush offers a choice of 0.8 or 1.28 gallons per flush (gpf).
• Stainless steel wand offers adjustable spray shape, position, water pressure, temperature, pulsate, and oscillate functions.
• Front and rear wash modes provide warm water for cleansing.
• Self-cleaning function uses UV light and electrolyzed water systems to sanitize the wand surfaces.
• Warm-air drying system with adjustable temperature settings.
• Automatic deodorization system.
• Heated seat with adjustable temperature settings.
• Motion-activated, hands-free opening/closing of seat and cover.
• Quiet-Close(TM) lid closes slowly and quietly without slamming.
• LED lighting illuminates the bowl to serve as a night-light.
• English-language touchscreen LCD remote control.
• Emergency flush feature for power outages.

Technology

• Dual-flush technology allows you to choose between a full- or partial-flush.

Installation

• Included components: Complete toilet and seat, supply stop valve, braided inlet supply hose, power cord, and LCD remote control.
• Standard 12-inch rough-in.
• For optimum flushing performance, a minimum water supply flow rate of 9.0 gallons per minute or 1.5 gallons in 10 seconds must be confirmed, prior to installation.
• Dedicated electrical GFCI circuit required (120V, 15A, 60Hz, 1800W).

Water Conservation & Rebates

• WaterSense(R) toilets meet strict EPA flushing guidelines, including using at least 20 percent less water than 1.6-gallons toilets
• This product meets water savings requirements for California Energy Commission (CEC), CALGreen, and Colorado SB 14-103.
