Old Number SV9641M-4510

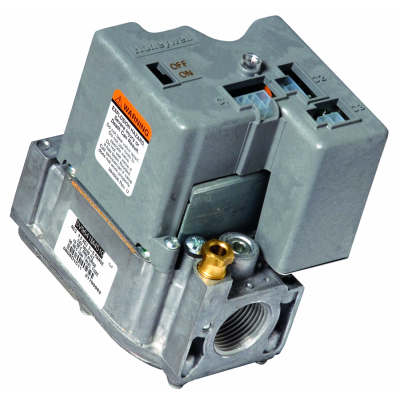

SmartValve gas valve combines gas flow control and electronic intermittent pilot sequencing functions into a single unit

The Q3450 or Q3480 Pilot hardware (not included) supplies the low voltage igniter, flame sensor and pilot burner

These ignition system controls provide all gas ignition safety functions by controlling gas flow, ignition source, and a 120 Vac or 240 Vac combustion air blower

The controls also monitor the appliance airflow proving switch and limit string to assure proper appliance operation, and provide prepurge, postpurge, and timed trial for pilot ignition with 100 percent shutoff and continuous retry

Includes a diagnostic LED indicator for system status - It can directly interface with the appropriate power supplies and a system thermostat for additional appliance applications

When controlled directly by a thermostat, the control does not provide a postpurge function, as power to the control is removed when the thermostat call for heat ends

Includes LP conversion kit and two 3/4 x 1/2 bushings
