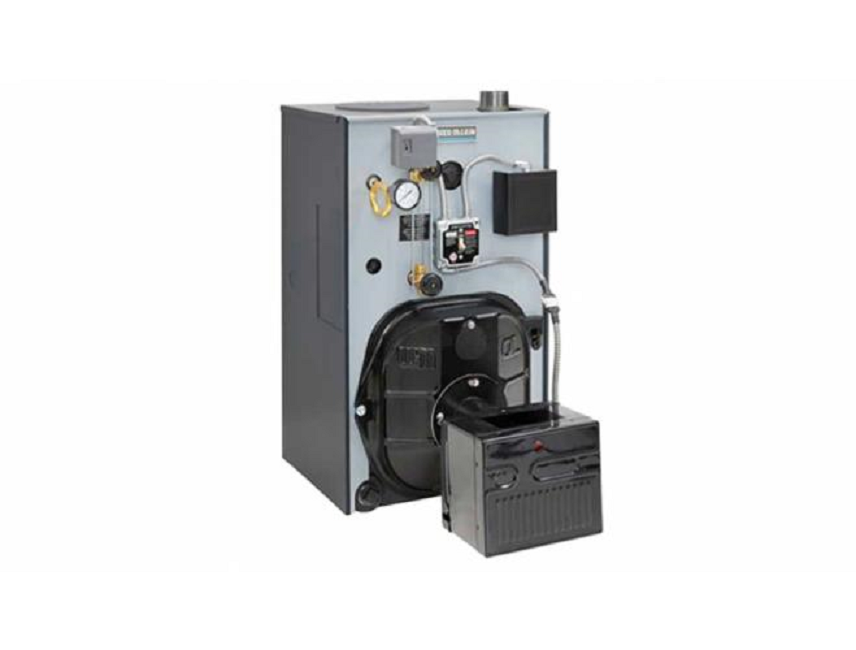

Weil McLain SGO-4 Oil Steam Boiler with Tankless Opening, Probe Type Low Water Cut Off and Beckett Burner

Item SKU - 385537 by P&H Kit
EDP - 385537


Please Login for Pricing

Product Description

No tankless coil, but does include a tankless cover plate - Swing away burner door with full chamber access increases visibility for inspection and servicing - Aluminized steel flue collector hood with flue cap on top outlet - Can be converted to rear outlet - Refractory blanket and target wall - High limit pressure control - Built in air separator - Vent damper - Gauge glass and guage cocks - Junction box with service switch - Barometric damper

Specifications

These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).

Fuel Type
Oil
Type
Steam
Heat Exchanger Material
Cast Iron
BTU Input
168000
BTU Output
144000
Annual Fuel Usage Efficiency (AFUE)
85.0
Domestic Hot Water
No
Vent Type
Atmospheric Vent
Building Type
Residential
Length (inches)
34
Width (inches)
20.25
Height of Boiler (inches)
36.75
Vent Material
Galvanized
All Fuel
Supply
Female Iron Pipe 2 1/2
Return
Female Iron Pipe 2
Square Feet of Steam
450
Vent Size (inches)
6
Weight (pounds)
705
