Overview

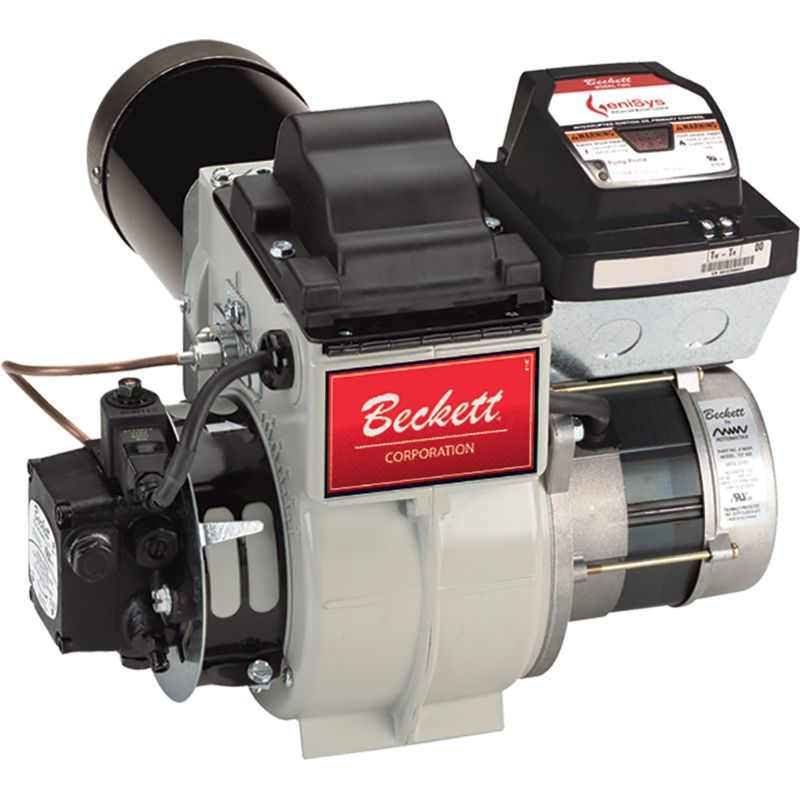

In the AFG burner, technically advanced components meet increased demand for improved burner performance in high-efficiency appliances and modern well-insulated homes. These advanced components are available on our B2000 series chassis and on a growing number of OEM appliances. The AFG's performance-enhancing features will help you meet today's toughest heating system challenges.

Performance Capabilities

• Nozzle Line Electrode Assembly - Self-centering, delivers oil to the nozzle, high voltage electricity to the electrodes; static plate controls and evens out air flow to the head for smooth, efficient combustion.
• Flame Retention Head - One-piece flame retention burner head. Highly stable and intense combustion increases efficiency by as much as 35%.
• Drive Motor - Continuous duty, permanent split capacitor, built for daily hard use and years of trouble-free operation. Overload protection included.
• Ignition Transformer - 10,000 V/23 mA secondary positively and smoothly ignites fuel. Electrically balanced and shielded. No TV interference. Designed for heavy duty continuous operation.
• Connector Tube Fitting - Special Beckett, high quality flare fitting.
• Burner Housing - Sturdy die cast, precisely machined aluminum housing aligns pump and motor for smoothest operation and longest coupling life.
