Overview

Our thermal safety switches efficiently detect flue gas spillage due to a blocked flue, continuous down drafting or inadequate draft condition. With the safety switch wired in series with the burner circuit, the switch will de-energize the systems burner or burner control once it senses the spillage of hot flue gases. Available for gas-fired and oil-fired applications.

Installation of a spillage safety switch is recommended for LP and Natural Gas-fired systems with draft hoods. This device is installed to detect flue gas spillage from a blocked flue system and/or inadequate draft. This device must be installed by a qualified installer in accordance with the manufacturer's installation instructions. Wiring should be in accordance with the National Electrical Code and applicable local codes.

Kit contains:

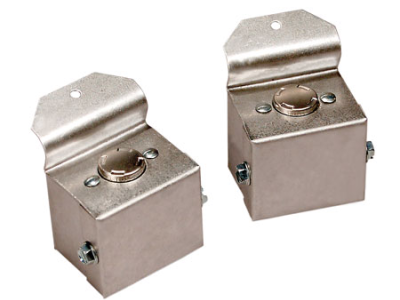

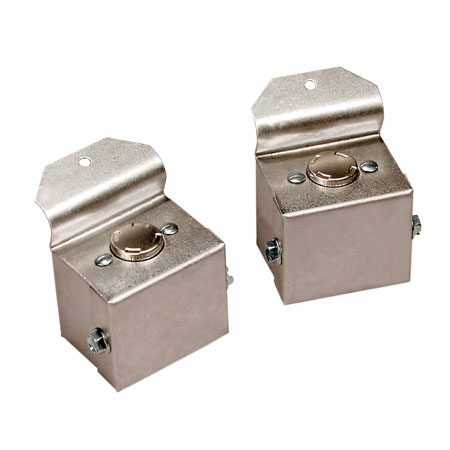

• 2 - Enclosed Spillage Sensing Switches with 180 degrees F. Manual Reset
• 1 - 6 Ft. Length 12/2 Jacketed Lead Wire
• 1 - 8 In. Length 12 GA Jumper Wire
• 3 - Adhesive Tabs
• 2 - #8 Self-drilling Sheet Metal Screws
