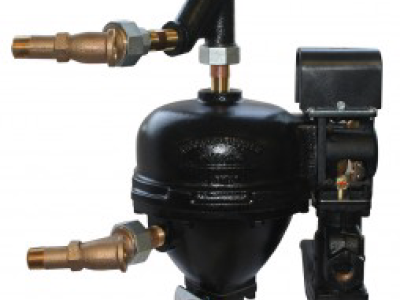

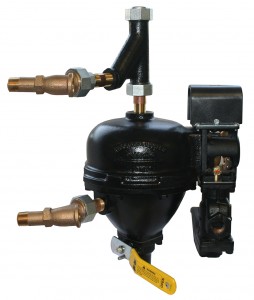

McDonnell & Miller 47-2 Mechanical Water Feeder/Low Water Cut-Off
Item SKU - 132800 by McDonnell Miller
EDP - 113985
Please Login for Pricing
Product Description
Overview
For steam and hot water boilers with cold water feed, to maintain a minimum safe water level independent of electrical service.
Features
- For steam and hot water boilers with cold water feed
- Continuous maintenance of minimum safe water level, independent of electrical service
- Proportional feed action
- Quick hook-up fittings provided
- Quick-change replaceable cartridge valve and strainer
- Optional features
- No. 2 switch
- Manual reset
- Model 47 can be field upgraded with a No. 2 switch to add low water cut-off function
- Maximum water supply pressure 150 PSI (10.5 kg/cm^2)
- Maximum inlet water temperature 120 degrees F (49 degrees C)
- Maximum boiler pressure 25 PSI (1.8 kg/cm^2)
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Approximate Weight (pounds)
28.5
