Overview

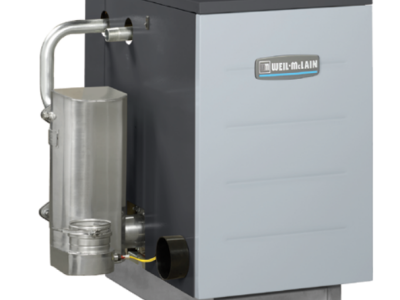

The Weil McLain GV90+ boiler has a durable cast iron primary heat exchanger that extends product life - it is not uncommon for cast iron boilers to last in excess of 40 years. A corrosion resistant stainless steel condensing secondary heat exchanger increases efficiency up to 5% by recouping heat energy from exhaust normally wasted when vented from the building. The extra heat energy is then added and circulated through the baseboard or radiators to efficiently heat the home. Unlike most high efficiency boilers in the industry, the Weil McLain GV90+ has extra-wide waterways (over 2 inches) allowing sludge and debris, often present in older systems, to flow through easily. This limits scale build up, which reduces boiler efficiency, performance and can lead to premature boiler failure. Down fired, counter flow boiler design improves boiler efficiency. The GV90+ offers 5 pass design in the primary heat exchanger and 2 pass design in the secondary heat exchanger maximizing heat transfer and optimizing boiler efficiency. Built in dual circulator strategy provides boiler protection - it can accept low return water temperatures (down to 60 degrees) with no additional mixing valves, pumps, wiring and installation labor. The lower water temperature also allows homeowners the flexibility to add radiant heating for kitchens, baths or other living spaces without the added cost of special return temperature controls.

Features

• LP conversion kit with rating plate
• Water content: 4.7 gallons
• Cast iron sections with air separator and stainless steel secondary heat exchanger with air separator
• Built in circulator and built in by-pass circulator system circulators cannot be removed or used elsewhere
• Stainless steel burner cone and ring assembly
• Hot surface ignition system
• Blower assembly with observation port
• Insulated extended jacket
• Condensate trap
• Sidewall vent termination kit; (Includes: Inside and outside metal termination plates and hardware)
• Control module with indicator lights
