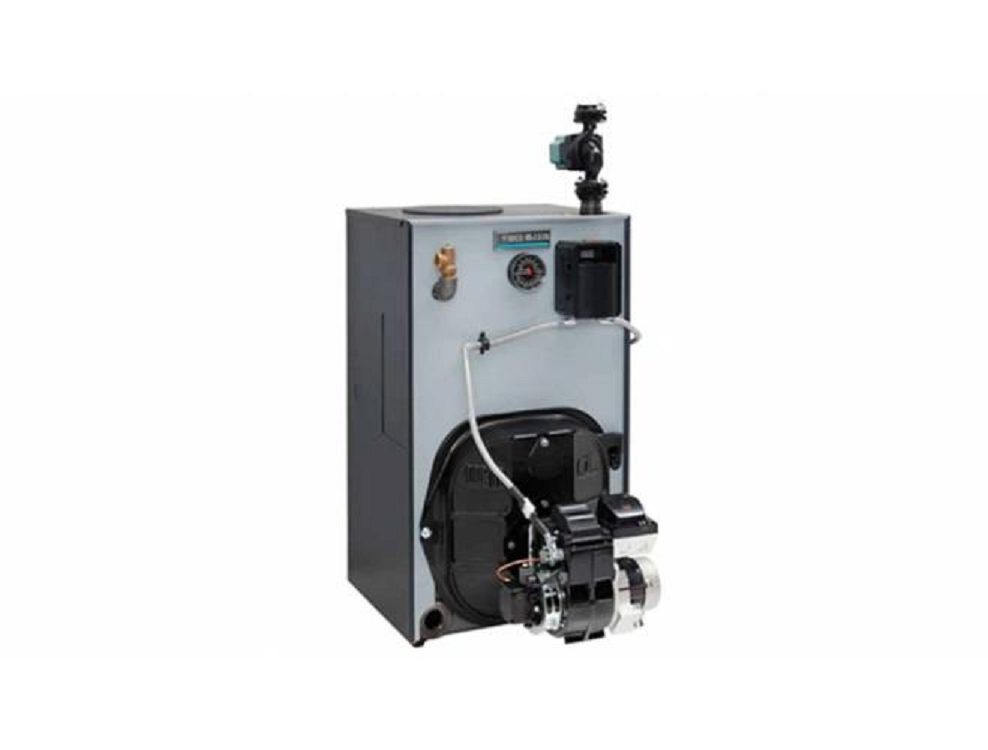

Weil McLain WGO-8 Oil Water Boiler with Taco 007 Circulator and Beckett Burner

Item SKU - 319087 by P&H Kit
EDP - 319087


Please Login for Pricing

Product Description

No tankless heater opening or cover plate - Swing away burner door with full chamber access increases visibility for inspection and servicing - Aluminized steel flue collector hood with flue cap on top outlet - Can be converted to rear outlet - Refractory blanket and target wall - High limit control with circulator relay, low water cut off function, and integrated service switch - Built in air separator - Barometric damper

Specifications

These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).

Fuel Type
Oil
Type
Water
Heat Exchanger Material
Cast Iron
BTU Input
322000
BTU Output
266000
Domestic Hot Water
No
Vent Type
Atmospheric Vent
Building Type
Residential
Length (inches)
43.75
Width (inches)
20.25
Height of Boiler (inches)
36.75
Vent Material
Galvanized
All Fuel
Supply
Female Iron Pipe 1 1/2
Return
Female Iron Pipe 1 1/2
Vent Size (inches)
8
Approximate Weight (pounds)
1030
