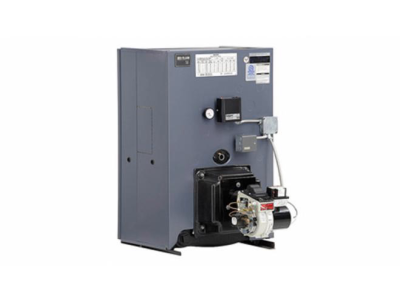

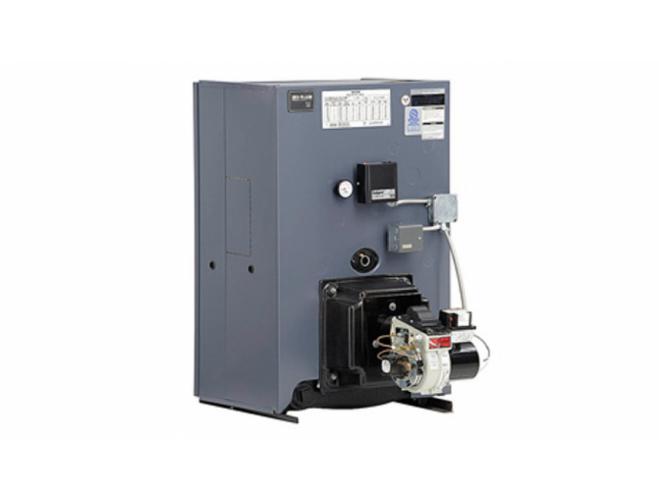

Weil McLain BL-480-W Oil Water Boiler with Carlin Burner and Mounting Plate less Circulator
Item SKU - 690650 by P&H Kit
EDP - 690650
Please Login for Pricing
Product Description
Features
- 476,000 BTU input - 396,000 BTU heating capacity - This boiler comes with a Carlin 201CRD-W burner and mounting plate, no circulator
- Cast iron sections - Insulated flush jacket - Observation ports on front and rear sections
- Steel flue collar and breeching damper - Refractory blanket and target wall in combustion area
- Side cleanout plates - Flue brush - Combination low and high limit pressure controls - Relief valve - Tridicator gauge
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Fuel Type
Oil
Type
Water
Heat Exchanger Material
Cast Iron
BTU Input
476000
BTU Output
396000
Domestic Hot Water
No
Vent Type
Atmospheric Vent
Building Type
Commercial
Length (inches)
47.255
Width (inches)
29.875
Height of Boiler (inches)
47.3125
Vent Material
Galvanized
Supply
Female Iron Pipe 4
Return
Female Iron Pipe 3
Vent Size (inches)
8
Net BTU
344000
Approximate Weight (pounds)
1673
Weil McLain BL-480-W Oil Water Boiler with Carlin Burner and Mounting Plate less Circulator
Item SKU - 690650 by P&H Kit (EDP 690650)
Stock / Price Information
Please Login for Pricing
Product Description
Features
- 476,000 BTU input - 396,000 BTU heating capacity - This boiler comes with a Carlin 201CRD-W burner and mounting plate, no circulator
- Cast iron sections - Insulated flush jacket - Observation ports on front and rear sections
- Steel flue collar and breeching damper - Refractory blanket and target wall in combustion area
- Side cleanout plates - Flue brush - Combination low and high limit pressure controls - Relief valve - Tridicator gauge
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
