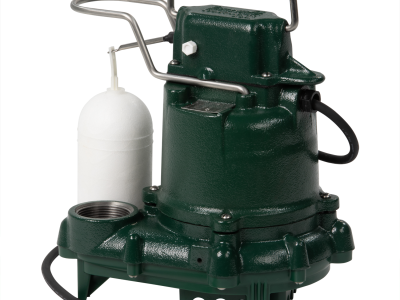

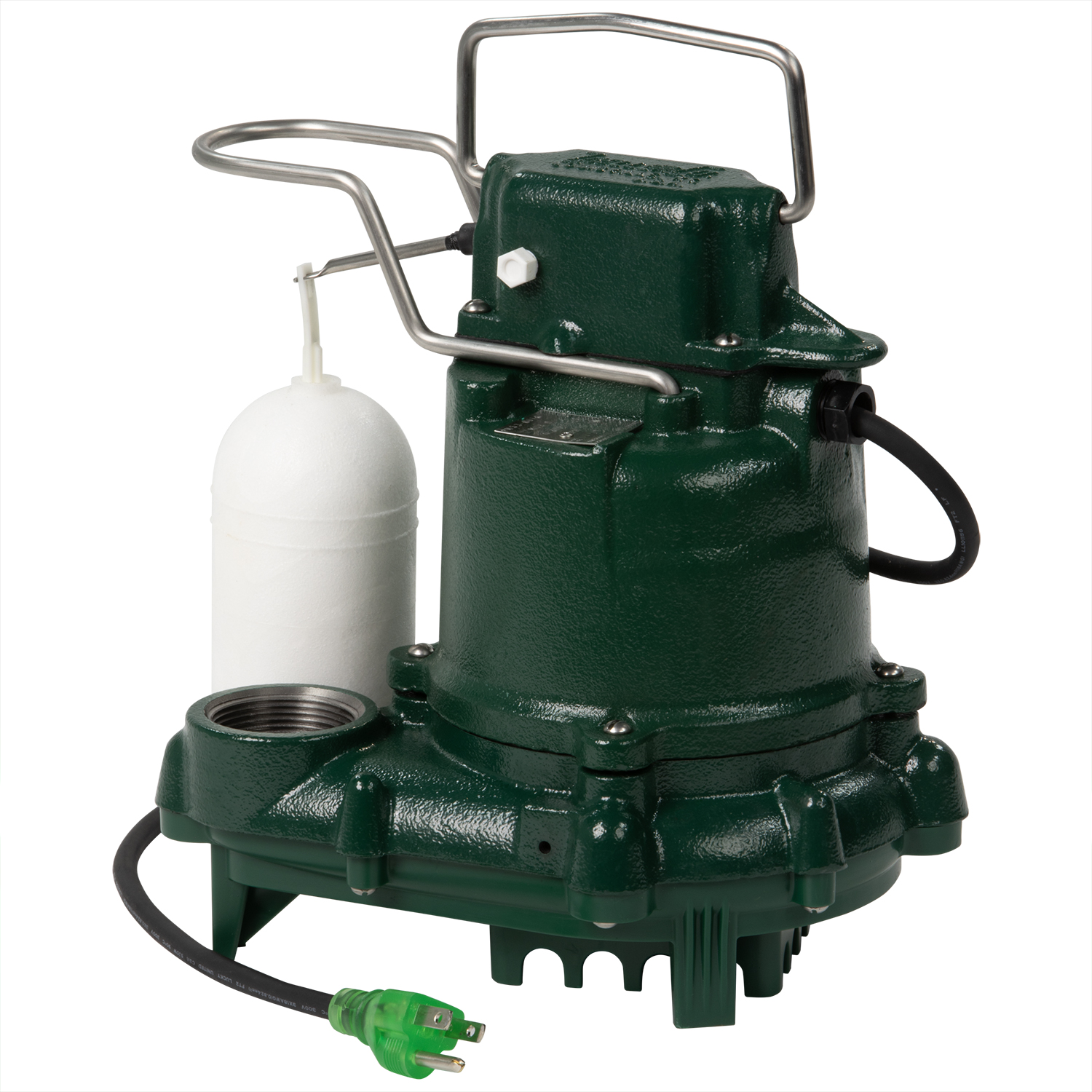

Overview

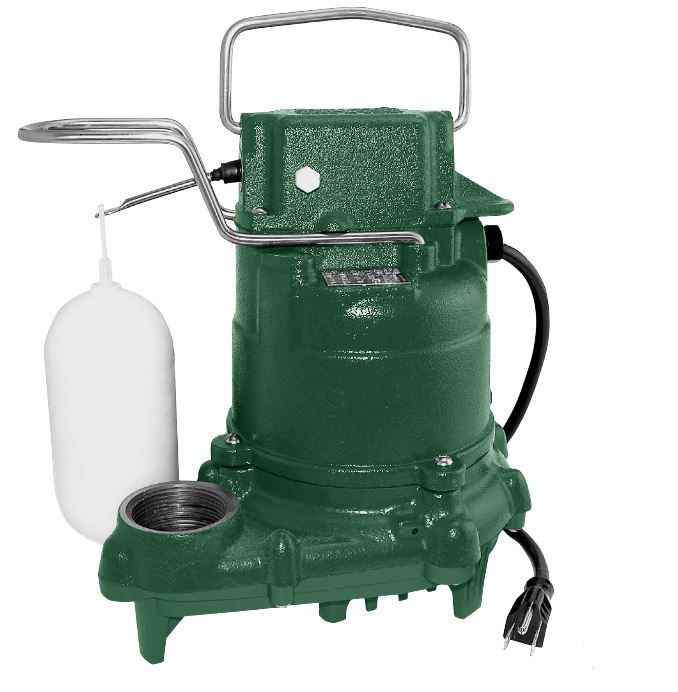

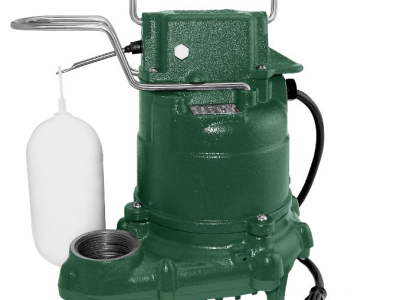

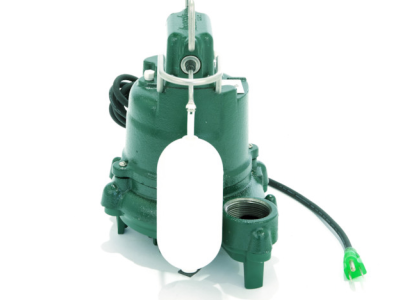

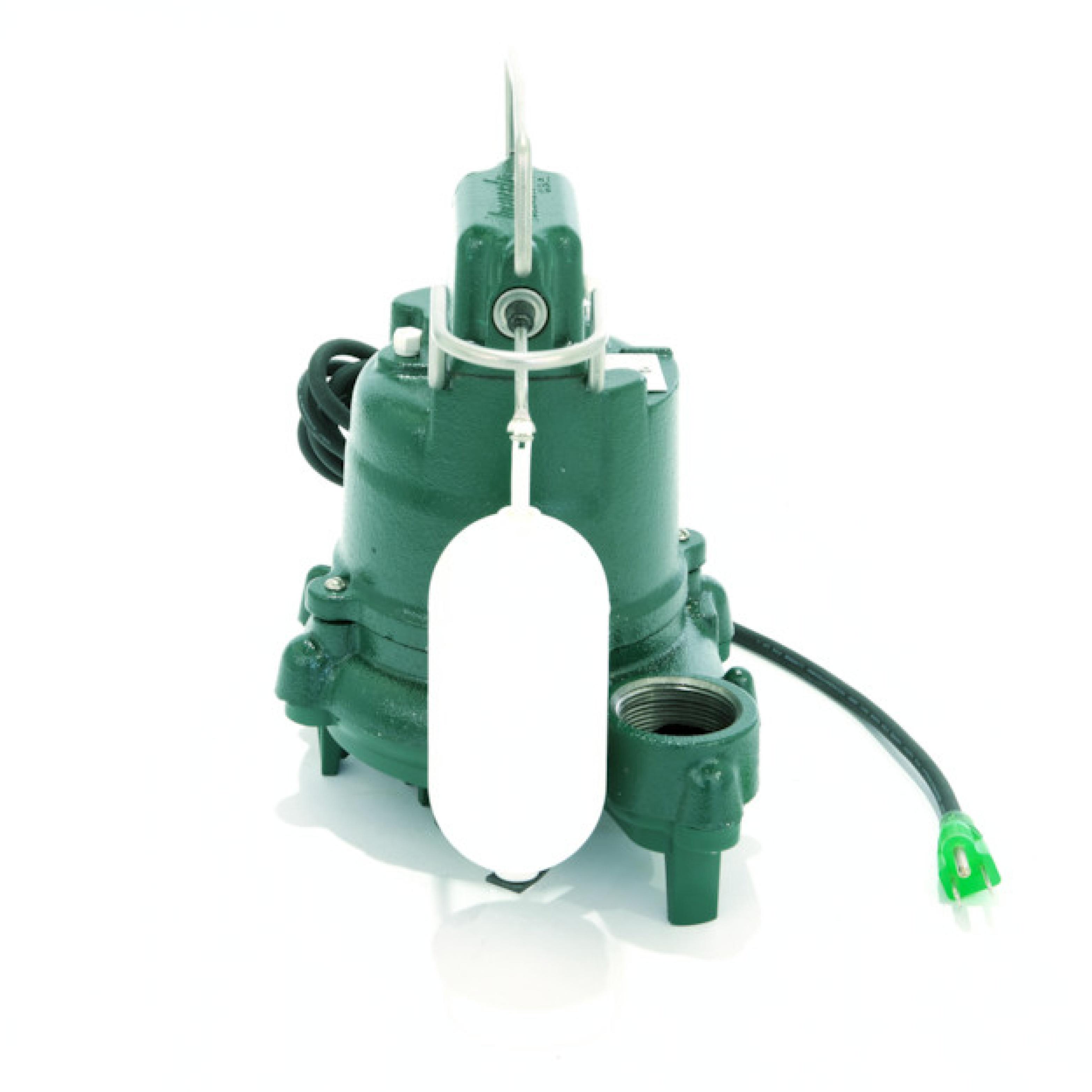

The "Mighty-Mate" series of submersible pumps is designed for use in residential or light commercial dewatering applications and can be used to transfer groundwater or effluent. Cast iron models include a powder coated epoxy finish to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance! This attention to detail is an inherent feature of every pump n this series, making it one of the most reliable in the industry.

Features

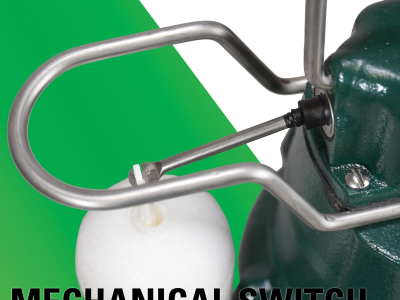

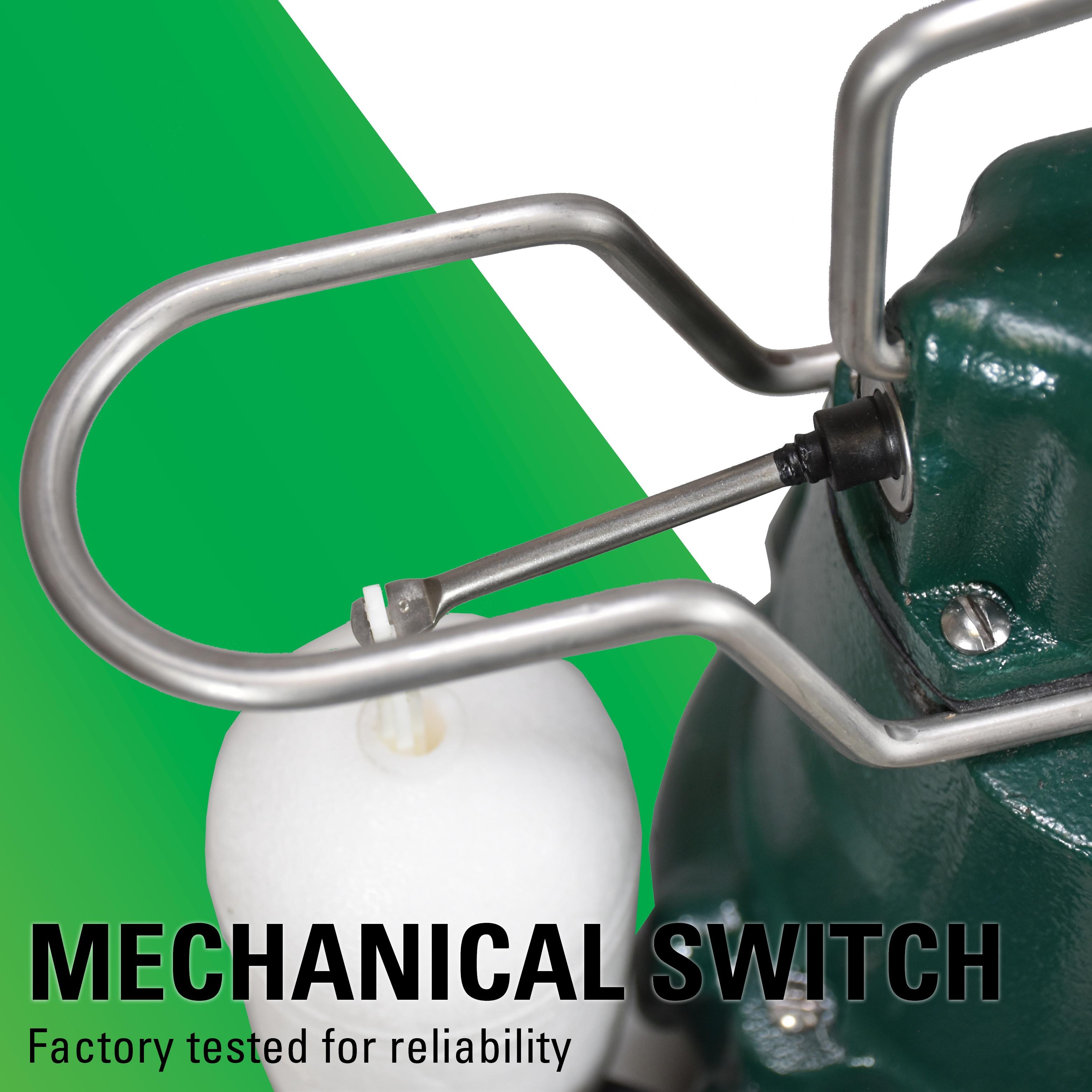

• Float-operated, submersible, 2-pole mechanical switch and variable level, long-cycle systems available
• Corrosion-resistant, powder-coated epoxy finish
• No sheet metal parts to rust or corrode

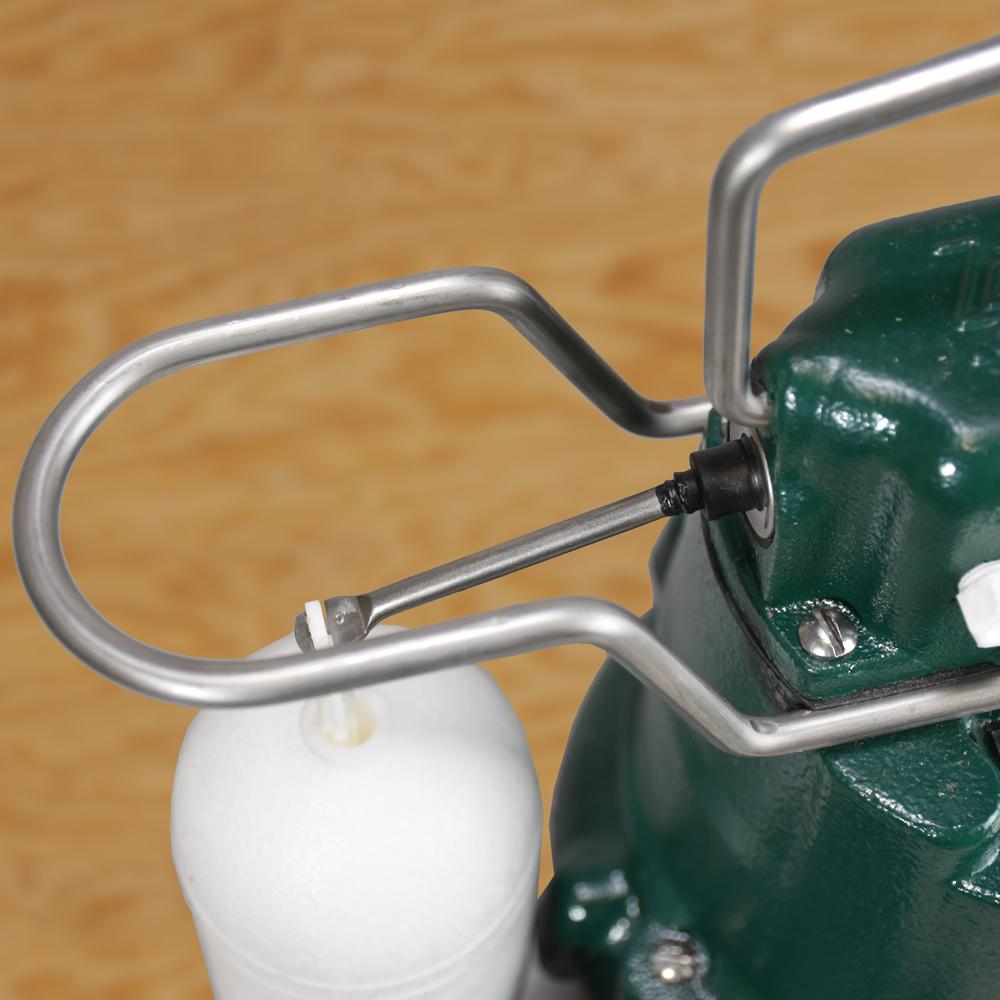

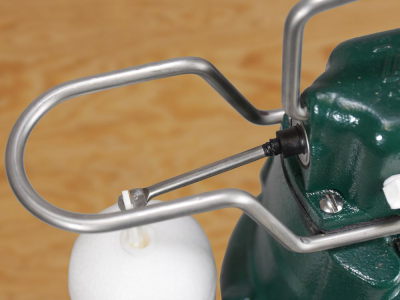

• Stainless steel screws, switch arm, guard and handle
• No screens to clog
• Watertight, neoprene square ring between motor and pump housing
• Solid, buoyant, polypropylene float
• Oil-filled, hermetically-sealed, automatic reset thermal overload protected motor
• Upper and lower sleeve bearings running in bath of oil
• Entire unit pressure-tested after assembly
• Carbon and ceramic shaft seal
• Maximum temperature for effluent or dewatering: 130 Degrees F (54 Degrees C)
• Passes 1/2" (13 mm) spherical solids

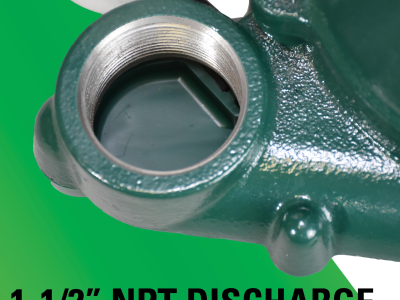

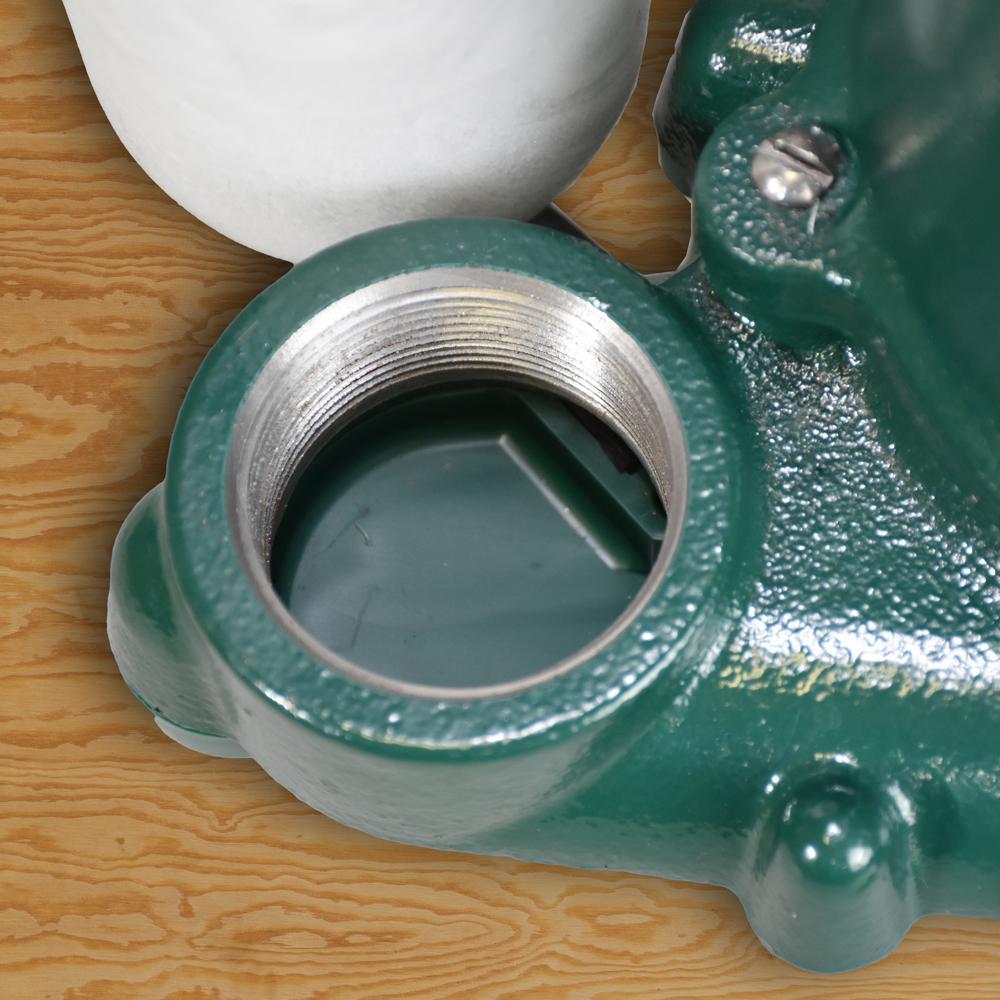

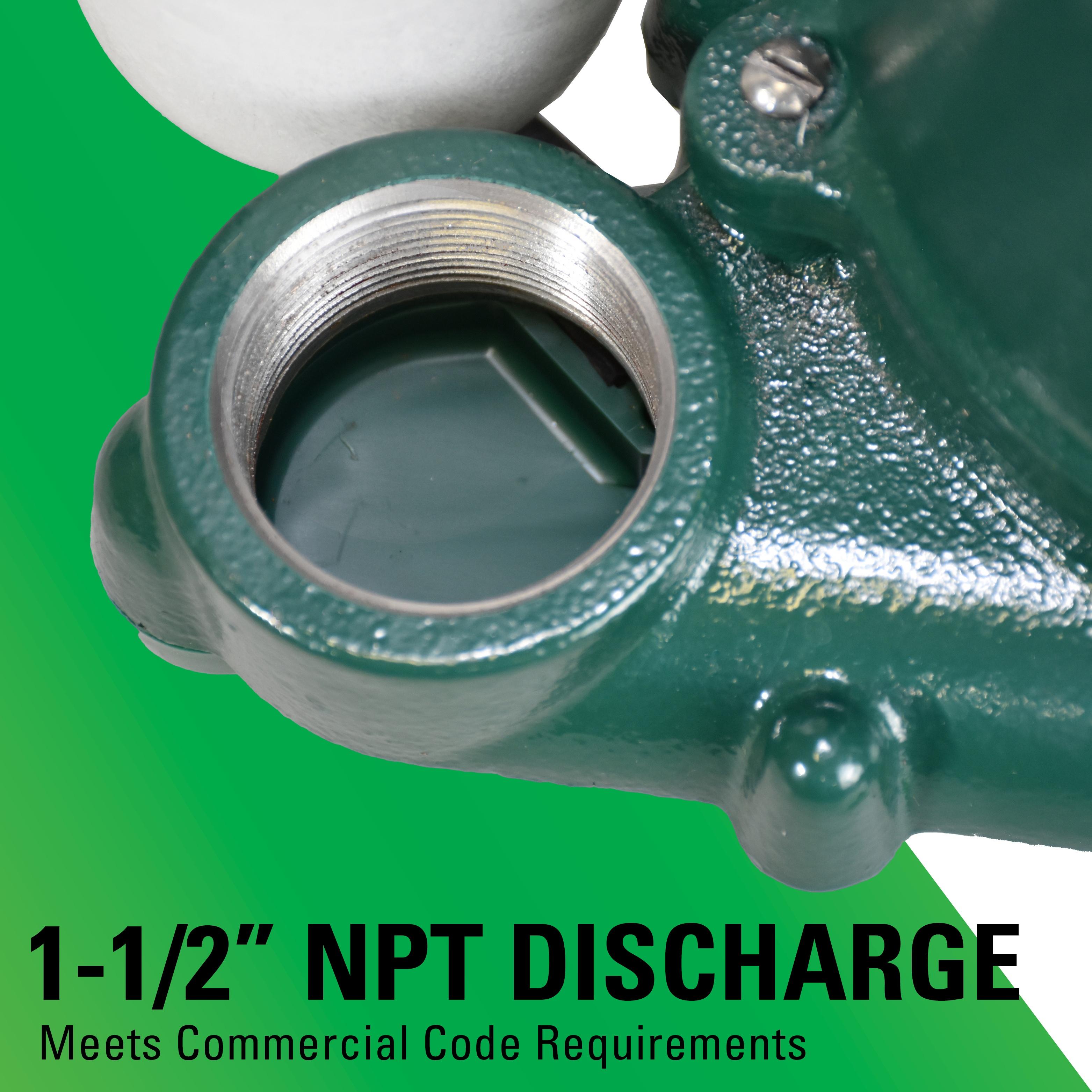

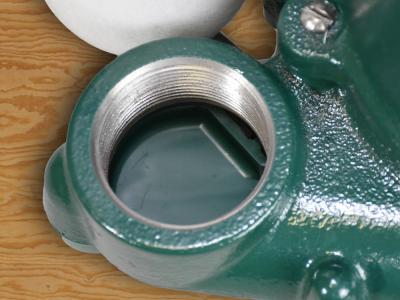

• 1-1/2" NPT discharge
• On point: 7-1/4" (18 cm)
• Off point: 3" (8 cm)
• Major width: 10-3/32" (26.2 cm)
• Major height: 10-1/16" (25.6 cm)
• Watertight and dust-tight
• Permanently oiled bearings

Special Model Features

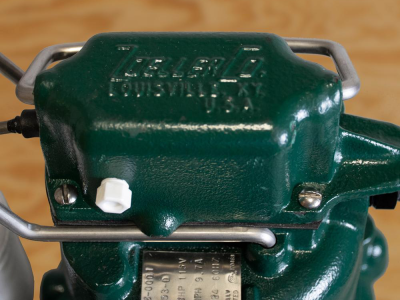

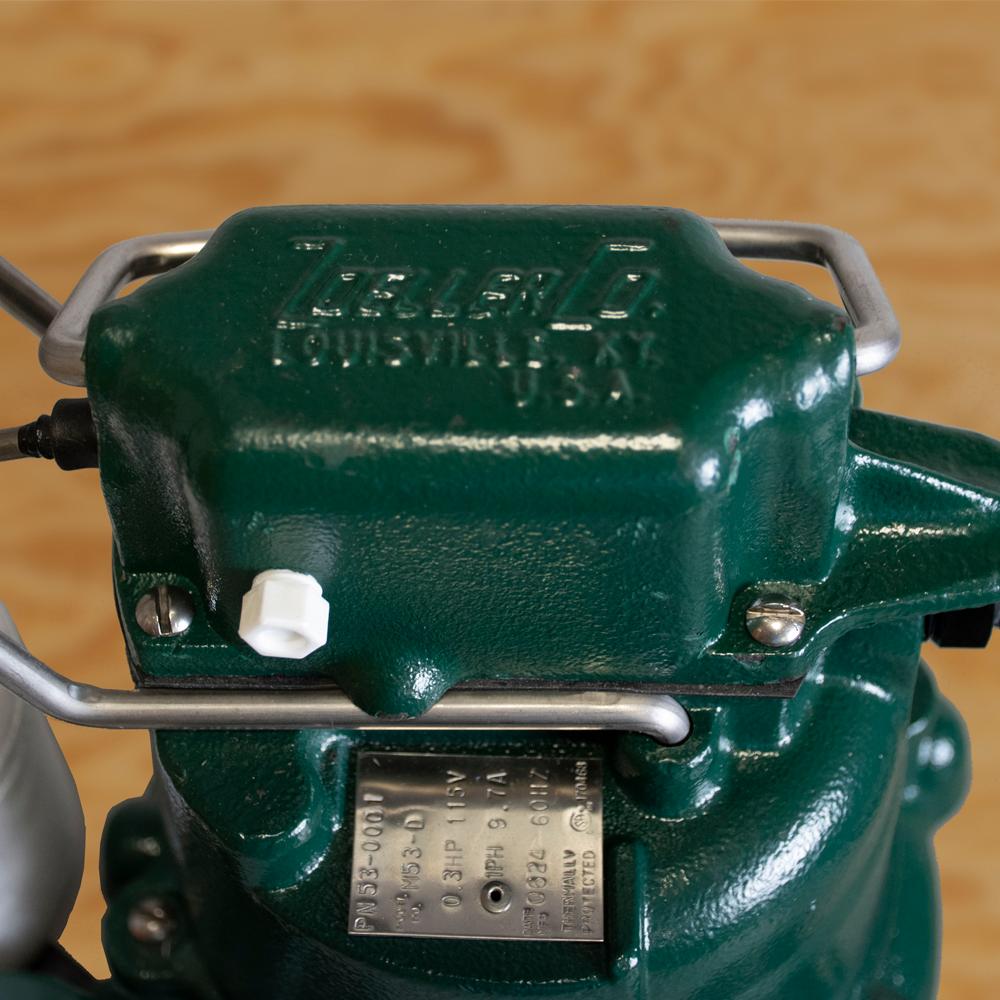

• Cast iron switch case, motor and pump housing

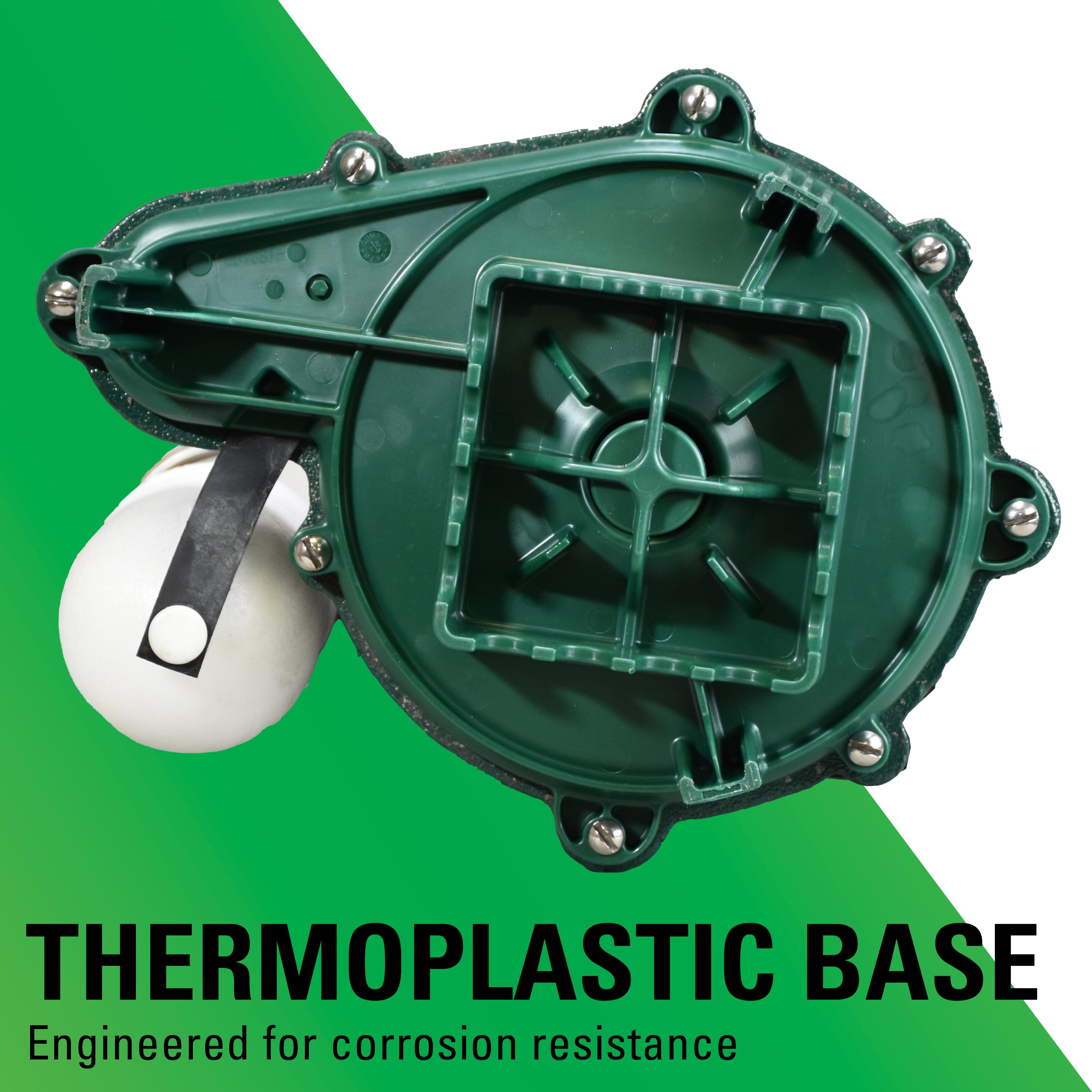

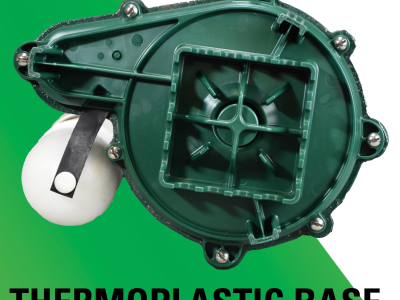

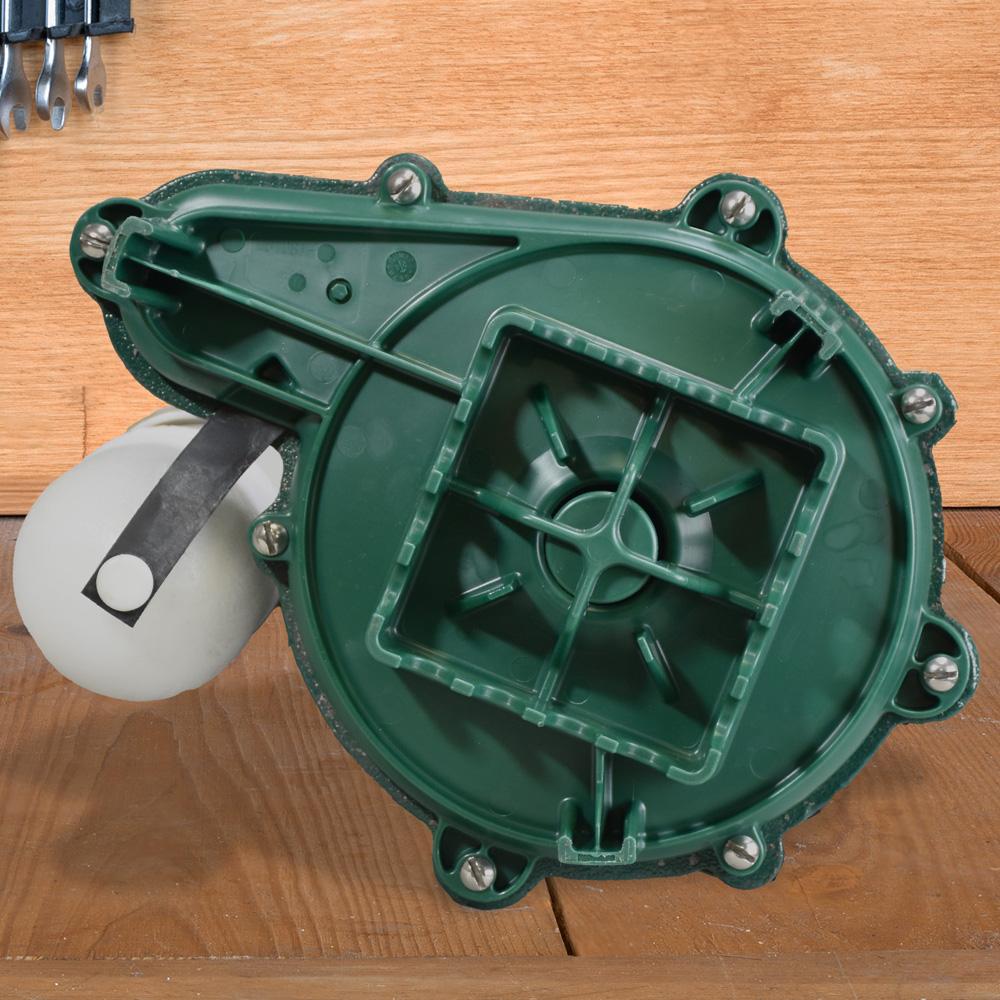

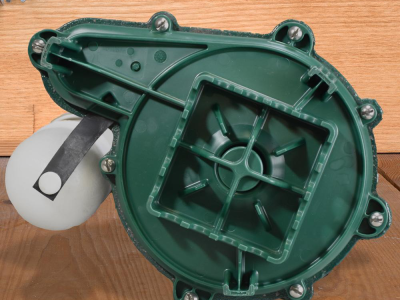

• Engineered thermoplastic base
• Engineered, glass-filled, plastic impeller with metal insert
• Stainless steel guard and handle
• Lower and upper bearing, oil-fed cast iron
