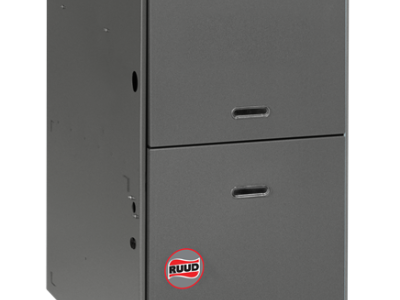

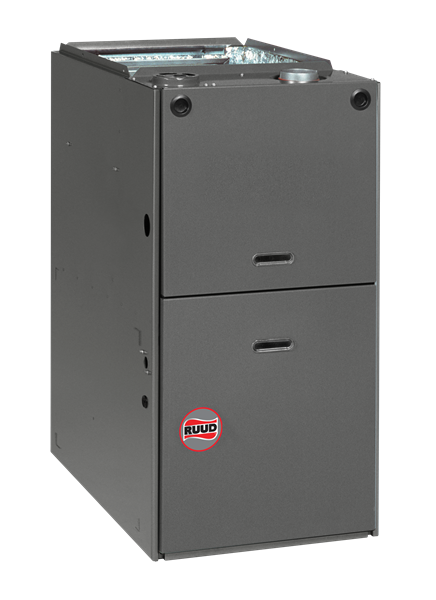

Ruud RGPN-5EARJR Achiever Series Natural Gas Multiposition Warm Air Furnace
Item SKU - RGPN-15EARJR by Rheem / Ruud
EDP - 374389
Please Login for Pricing
Product Description
- Design
- All models are equipped with a molded permanent filter & right or left side gas & electric inlet connections with quick simple change. Units are also designed to be convertible from upflow to horizontal left or right without field conversion. This innovative combustion design results in reliable, efficient operations at sound levels which provide a distinct competitive advantage.
- Cabinet
- The units are constructed with Pre-paint galvanized steel cabinets for added reliability & durability. For added service-ability, grab-holes have been emplaced in doors to aid in easy door removal & replacement.
- Low Profile
- The "34 inch" [864mm] design is lighter & easier to handle, making is easily installed & leaves room for optional equipment & optimal access for maintenance.
- Patented Heat Exchanger
- Constructed of aluminized steel for maximum corrosion resistance and thermal fatigue reliability.
- Direct Spark Ignition & Remote Sensor
- The robust & reliable direct spark ignition is an efficient method of gas ignition while the remote flame sensor monitors the flame. For added safety & personal peace of mind the direct spark ignition with remote sensor will lock out system after trial for ignition if main burner fails to ignite.
- Motor & Blower Compartment
- With an energy efficient & quiet single stage PSC motor, an insulated blower compartment to help reduce jacket loss & noise, makes it one of the most reliable & quietest furnaces on the market today.
- Furnace Control
- All models feature an integrated board & are equipped with humidifier & electronic air cleaner hookups for added heating capacity & efficiency.
- Induced Draft Blower
- It works specifically with the heat exchanger. The blower pulls hot combustion gases through the exchanger & vents them outdoors.
- In-Shot Burners
- Regulate the air/gas mixture for increased reliability & dependability.
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Fuel Type
Natural Gas
Configuration
Horizontal
Upflow
BTU Input
150000
BTU Output
119000
Annual Fuel Usage Efficiency (AFUE)
80.0
Nominal Cooling Capacity (Tons)
5.0
Motor Type
PSC
Vent Type
Atmospheric Vent
Height (inches)
34
Width (inches)
24.5
Depth (inches)
28.0625
Supply Opening Depth
20
Supply Opening Width
23.34375
Return Opening Depth
23.53125
Return Opening Width
22
Weight (pounds)
150
Building Type
Residential
Flue Size
3
Blower Type
3/4 HP 4-Speed
Cooling CFM at 1/2 Static Pressure
2000
Heating Fan Speed
Medium-Low
Cooling Fan Speed
Medium-High
Warranty
Conditional Parts Warranty - 10 Years (Registration Required)
Limited Parts Warranty - 5 Years
Heat Exchanger Warranty - 20 Years
