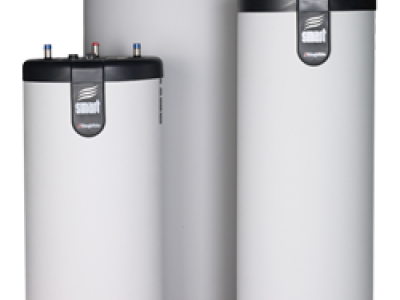

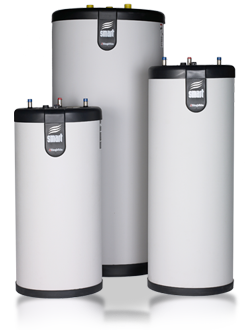

Triangle Tube Smart 100 Smart Series Indirect Fired Water Heater
Item SKU - Smart 100 by Phase III
EDP - 775732
Please Login for Pricing
Product Description
Features
- Exclusive "Tank-in-Tank" Technology
- Abundant Domestic Hot Water at the Lowest Possible Cost
- A Limited Residential Lifetime Warranty
- 2" of Polyurethane Foam Insulation
- Self Cleaning/Self Descaling Heat Exchanger
- Lowest Pressure Drop in the Industry
- 7 Sizes to Choose From
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Tank Size (Gallons)
95
Heat Exchanger Material
Stainless Steel
Tank Material
Stainless Steel
Heat Exchanger Style
Tank in tank
Number of Heat Exchangers
1
Height (inches)
78
Diameter/Width (inches)
26
Boiler Water Connection
1 1/2 Female
Water Inlet Size
1 1/2 Female
Hot Water Outlet Size
1 1/2 Female
Boiler Connection Location
Bottom
Input Water Temperature
200 degrees
Domestic Water Temperature
140 degrees
First Hour Rating (GPH)
525
Continuous Flow (GPH)
450
Relief Valve
No
Boiler Output Required (BTU)
337000
Warranty
Limited Lifetime
Approximate Weight (pounds)
362
