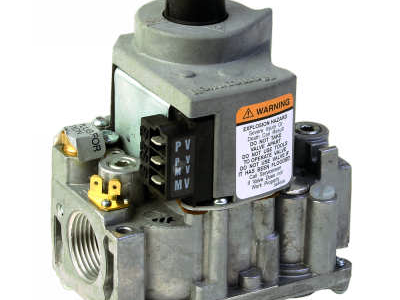

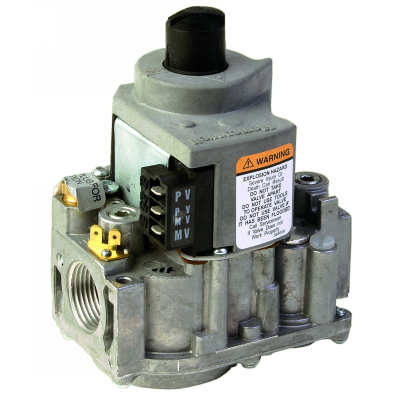

Honeywell VR8345K-4809/U 3/4 inch x 3/4 inch Universal Electronic Ignition Slow Opening Natural Gas Valve with LP Conversion Kit
Item SKU - VR8345K4809/U by Honeywell
EDP - 1056598
Please Login for Pricing
Product Description
Old Number VR8345K-4809
For use with direct spark ignition, hot surface ignition or intermittent pilot ignition
Includes manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug, ignition adapter, two 3/4 inch x 1/2 inch bushings, and an LP conversion kit
Single stage - 24 Volt - Slow Opening - 300,000 BTU per hour at 1 inch water column - 30,000 BTU per hour minimum - 415,000 BTU per hour maximum
Easy to install, adjust and service; all adjustments and connections are accessible from top of control
Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper - Internal inlet screen blocks contaminants in gas line from entering valve
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Approximate Weight (pounds)
